IFixedOrbit Interface Reference

Interface defining the fixed motion of an NBody object. More...

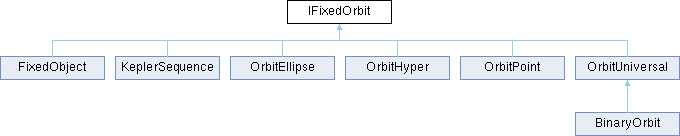

Inheritance diagram for IFixedOrbit:

Public Member Functions
bool	IsOnRails ()
	Check if body is configured at scene start to be fixed. (Allows objects to be optionally configured as not fixed, to allow e.g. Kepler eqn vs initial velocity in OrbitEllipse)
void	PreEvolve (float physicalScale, float massScale)
	Called for each NBody object prior to evolution beginning. Allows a chance to setup internal state.
void	Evolve (double physicsTime, GravityState gravityState, ref double[] r, ref double[] v, bool isQuery=false)
	Evolve the NBody. Implementating method uses physics time and scale to compute the new position, placing it in r. Velocity is also updated so that GetVelocity() can request it if it is of interest.
void	GEUpdate (GravityEngine ge)
	Perform and update of the world game object position and velocity based on the internal state.
void	Move (Vector3 position)
	Handle dynamic origin shift.
void	SetNBody (NBody nbody)
	Set the NBody that the orbit element will evolve. This is not commonly used, since the NBody is typically attached to the same game object as the FixedOrbit. The exception is when fixed orbit segments are part of a KeplerSequence (patched-conic evolution).
Vector3	ApplyImpulse (Vector3 impulse)
	ApplyImpulse in Kepler mode. (Currently only OrbitUniversal does this)
NBody	GetCenterNBody ()
	Return the center NBody for the fixed orbit.
void	UpdatePositionAndVelocity (Vector3 pos, Vector3 vel)
	Update the position and velocity of the object in the orbit.
string	DumpInfo ()
	Create a string with info for display in GEConsole.

Detailed Description

Interface defining the fixed motion of an NBody object.

Scripts implementing this interface must be attached to a game object that also has an NBody component.

Objects with fixed motion will have their mass used to create the global gravitational field but will not be affected by that field. Their motion is defined by the Evolve() method. When called they are responsible for updating their position.

Member Function Documentation

ApplyImpulse()

Vector3 IFixedOrbit.ApplyImpulse

(

Vector3

impulse

)

ApplyImpulse in Kepler mode. (Currently only OrbitUniversal does this)

Returns

Implemented in OrbitEllipse, OrbitHyper, FixedObject, KeplerSequence, OrbitPoint, and OrbitUniversal.

DumpInfo()

string IFixedOrbit.DumpInfo

(

)

Create a string with info for display in GEConsole.

Returns

Implemented in BinaryOrbit, OrbitEllipse, OrbitHyper, FixedObject, KeplerSequence, OrbitPoint, and OrbitUniversal.

Evolve()

void IFixedOrbit.Evolve	(	double	physicsTime,
		GravityState	gravityState,
		ref double[]	r,
		ref double[]	v,
		bool	isQuery = false
	)

Evolve the NBody. Implementating method uses physics time and scale to compute the new position, placing it in r. Velocity is also updated so that GetVelocity() can request it if it is of interest.

Parameters

physicsTime	Current Physics time.
physicalScale	Physical scale.
r	Position in physics space (x, y, z). OUTPUT by the method
v	Velocity in physics space (x, y, z). OUTPUT by the method
isQuery	Request is a query and should not change state or do callbacks

Implemented in BinaryOrbit, OrbitUniversal, FixedObject, OrbitPoint, KeplerSequence, OrbitEllipse, and OrbitHyper.

GetCenterNBody()

NBody IFixedOrbit.GetCenterNBody

(

)

Return the center NBody for the fixed orbit.

Returns

Implemented in OrbitEllipse, OrbitHyper, FixedObject, KeplerSequence, OrbitPoint, and OrbitUniversal.

GEUpdate()

void IFixedOrbit.GEUpdate

(

GravityEngine

ge

)

Perform and update of the world game object position and velocity based on the internal state.

Implemented in OrbitEllipse, OrbitHyper, FixedObject, KeplerSequence, OrbitPoint, and OrbitUniversal.

IsOnRails()

bool IFixedOrbit.IsOnRails

(

)

Check if body is configured at scene start to be fixed. (Allows objects to be optionally configured as not fixed, to allow e.g. Kepler eqn vs initial velocity in OrbitEllipse)

Returns

true if this instance is fixed; otherwise, false.

Implemented in BinaryOrbit, OrbitEllipse, OrbitHyper, FixedObject, KeplerSequence, OrbitPoint, and OrbitUniversal.

Move()

void IFixedOrbit.Move

(

Vector3

position

)

Handle dynamic origin shift.

Parameters

position

Implemented in OrbitEllipse, OrbitHyper, FixedObject, KeplerSequence, OrbitPoint, and OrbitUniversal.

PreEvolve()

void IFixedOrbit.PreEvolve	(	float	physicalScale,
		float	massScale
	)

Called for each NBody object prior to evolution beginning. Allows a chance to setup internal state.

Parameters

physicalScale	Physical scale.
massScale	Mass scale.

Implemented in BinaryOrbit, OrbitEllipse, OrbitHyper, FixedObject, KeplerSequence, OrbitPoint, and OrbitUniversal.

SetNBody()

void IFixedOrbit.SetNBody

(

NBody

nbody

)

Set the NBody that the orbit element will evolve. This is not commonly used, since the NBody is typically attached to the same game object as the FixedOrbit. The exception is when fixed orbit segments are part of a KeplerSequence (patched-conic evolution).

Parameters

nbody

Implemented in OrbitEllipse, OrbitHyper, FixedObject, KeplerSequence, OrbitPoint, and OrbitUniversal.

UpdatePositionAndVelocity()

void IFixedOrbit.UpdatePositionAndVelocity	(	Vector3	pos,
		Vector3	vel
	)

Update the position and velocity of the object in the orbit.

Currently only implemented in OrbitUniversal for changes in the center body due to patched conic transitions.

Parameters

pos
vel

Implemented in OrbitEllipse, OrbitHyper, FixedObject, KeplerSequence, OrbitPoint, and OrbitUniversal.

---

The documentation for this interface was generated from the following file:

• C:/Users/musgr/Documents/Unity/gravityengine/Assets/GravityEngine/Scripts/Engine/IFixedOrbit.cs
