MultiStageEngine Class Reference

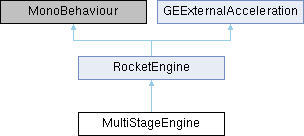

Inheritance diagram for MultiStageEngine:

Public Member Functions
override void	SetThrustAxis (Vector3 thrustAxis)
	Set the thrust axis. May be over-ridden to update internals if they exist.
override void	SetEngine (bool on)
	Set engine state to on.
override void	SetThrottlePercent (float throttlePercent)
	Set the engine throttle level (as a percent).
override double[]	acceleration (double time, GravityState gravityState, ref double massKg)
	Determine the acceleration at the specified time. The accleration returned must be in the physical units used by the integrators. For GE units other than DIMENSIONLESS this will involve some use of GravityScalar conversion functions. See the MultiStageEngine implementation for an example.
override float	GetFuel ()
	Gets the fuel for the active stage.
void	NextStage ()
	Start the next stage.
override float	GetThrottlePercent ()
Public Member Functions inherited from RocketEngine
abstract void	SetThrustAxis (Vector3 thrustAxis)
	Set the thrust axis. May be over-ridden to update internals if they exist.
abstract double[]	acceleration (double time, GravityState gravityState, ref double massKg)
	Determine the acceleration at the specified time. The accleration returned must be in the physical units used by the integrators. For GE units other than DIMENSIONLESS this will involve some use of GravityScalar conversion functions. See the MultiStageEngine implementation for an example.
abstract void	SetEngine (bool state)
	Set engine state to on.
bool	IsEngineOn ()
abstract void	SetThrottlePercent (float throttle)
	Set the engine throttle level (as a percent).
abstract float	GetThrottlePercent ()
abstract float	GetFuel ()
	Get the current fuel remaining.
void	SetRotation (Quaternion rotation)
double[]	acceleration (double time, GravityState gravityState, ref double massKg)
	Determine the acceleration at the specified time for the provided gravity state.

Public Attributes
double	payloadMass
	mass of payload (kg)
int	numStages
int	activeStage
	currently active stage - stages less than this are assumed jetisoned
double[]	massFuel
	Stage masses will be allocated by inspector script on first access.
double[]	massStageEmpty
	mass of empty stage
double[]	burnRate
	burn rate in kg/sec
double[]	crossSectionalArea
	cross sectional area in m^2 for drag calculations
double[]	coeefDrag
	drag co-efficient (dimensionless, typically about 2.1)
double[]	thrust
	thrust of engine in N
GameObject[]	effectObject
	Particle effect object (flame etc.) for a stage. Set to active when engine is on.
Public Attributes inherited from RocketEngine
bool	engineOn
	state of engine (or the active stage of a multi-stage engine)
Vector3	thrustAxis
	direction of thrust. Must be unit length.

Static Public Attributes
const int	MAX_STAGES = 10
	Implementation for a multi-stage stage rocket with atmospheric drag that depends on velocity and altitude.

Additional Inherited Members
Protected Attributes inherited from RocketEngine
Vector3	accelDirection
	"live" thrust vector reflecting orientation of ship model

Member Function Documentation

acceleration()

override double[] MultiStageEngine.acceleration ( double  time, GravityState  gravityState, ref double  massKg  )

virtual

Determine the acceleration at the specified time. The accleration returned must be in the physical units used by the integrators. For GE units other than DIMENSIONLESS this will involve some use of GravityScalar conversion functions. See the MultiStageEngine implementation for an example.

When used in trajectory mode, this function may be called more than once for a given time, and as thrust changes. It will also be called for future times to determine the future path of the rocket.

Parameters

time	time for which the thrust should be determined.

Returns

acceleration in [0..2], mass in [3]

Implements RocketEngine.

GetFuel()

override float MultiStageEngine.GetFuel ( )

virtual

Gets the fuel for the active stage.

Parameters

time

Returns

Implements RocketEngine.

GetThrottlePercent()

override float MultiStageEngine.GetThrottlePercent ( )

virtual

Implements RocketEngine.

NextStage()

void MultiStageEngine.NextStage

(

)

Start the next stage.

Returns

SetEngine()

override void MultiStageEngine.SetEngine ( bool  state )

virtual

Set engine state to on.

Parameters

state

Implements RocketEngine.

SetThrottlePercent()

override void MultiStageEngine.SetThrottlePercent ( float  throttle )

virtual

Set the engine throttle level (as a percent).

Parameters

throttle

Implements RocketEngine.

SetThrustAxis()

override void MultiStageEngine.SetThrustAxis ( Vector3  thrustAxis )

virtual

Set the thrust axis. May be over-ridden to update internals if they exist.

Parameters

thrustAxis

Implements RocketEngine.

Member Data Documentation

massFuel

double [] MultiStageEngine.massFuel

Stage masses will be allocated by inspector script on first access.

mass of fuel in kg

MAX_STAGES

const int MultiStageEngine.MAX_STAGES = 10

static

Implementation for a multi-stage stage rocket with atmospheric drag that depends on velocity and altitude.

---

The documentation for this class was generated from the following file:

• C:/Users/musgr/Documents/Unity/gravityengine/Assets/GravityEngine/Scripts/ExternalAcceleration/MultiStageEngine.cs
