DustRing Class Reference

Dust ring. Create a ring of particles in orbit around an NBody mass. Allows full control over the orbital attributes of the ring particles. More...

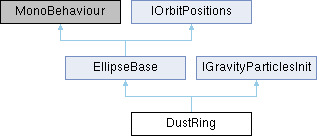

Inheritance diagram for DustRing:

Public Member Functions
void	InitNewParticles (int numLastActive, int numActive, ref double[,] r, ref double[,] v)
	Provide the initial positions and velocity for a range of particles. This method will be called as particles are created by the particle system. The implementing class must fill in the r[,] and v[,] arrays for the range specified. These arrays are indexed by [particle_num, dimension] where dimension 0,1,2 correspond to x,y,z.
void	ApplyScale (float scale)
	Apply scale to the orbit. This is used by the inspector scripts during scene setup. Do not use at run-time.
Public Member Functions inherited from EllipseBase
void	Init ()
	Init the ellipse, verify a center body is present, determine orientation and update transform.
void	SetCenterBody (GameObject centerBody)
	Sets the center body and initializes the ellipse configuration.
void	InitFromOrbitData (OrbitData od)
	Inits an EllipseBase orbit from orbital parameters contained in an OrbitData.
OrbitData	GetOrbitData ()
void	SetInitialPosition (NBody nbody)
	Sets the initial position based on the orbit parameters. Used in the init phase to set the NBody in the correct position in the scene before handing control GE.
Vector3[]	OrbitPositions (int numPoints, Vector3 centerPos, bool doSceneMapping)
	Calculate an array of points that describe the specified orbit.
Vector3[]	OrbitSegmentPositions (int numPoints, Vector3 centerPos, Vector3 startPos, Vector3 endPos, bool shortPath)
	Generate the points for an orbit segment given the start and end positions. If shortPath then the short path between the points will be shown, otherwise the long way around.
GameObject	GetCenterObject ()
	Return the center object around which this ellipse is defined.
Vector3[]	OrbitPositions (int numPoints, Vector3 centerPos, bool doSceneMapping)
void	InitNewParticles (int fromParticle, int toParticle, ref double[,] r, ref double[,] v)
	Provide the initial positions and velocity for a range of particles. This method will be called as particles are created by the particle system. The implementing class must fill in the r[,] and v[,] arrays for the range specified. These arrays are indexed by [particle_num, dimension] where dimension 0,1,2 correspond to x,y,z.

Public Attributes
float	ringWidthPercent
	Width of particle ring as a percent of ring radius.
Public Attributes inherited from EllipseBase
ParamBy	paramBy = ParamBy.AXIS_A
	Define ellipse by semi0major axis (A) or closest approach (P)
GameObject	centerObject
	object to orbit around (if null, will take parent game object)
float	ecc
	eccentricity (0..1, 0=circle, 1=linear)
float	a_scaled = -1f
float	p_scaled
float	a = 10f
	(a,p) hold the values for a and p in the unit system specified by the gravity engine. These are scaled and used to set a and p for game simulation based on the unit scaling system provided by gravity engine.
float	p
	pericenter - based on paramBy user can specify a OR p. a = p/(1-ecc)
float	omega_uc
	"longitude of ascending node" - angle from x-axis to line from focus to pericenter
float	omega_lc
	"argument of perienter" - angle from ascending node to pericenter
float	inclination
	inclination (degrees!)
float	phase
	initial TRUE anomoly (angle wrt line from focus to closest approach)

Additional Inherited Members
Public Types inherited from EllipseBase
enum	ParamBy { AXIS_A , CLOSEST_P }
Protected Member Functions inherited from EllipseBase
void	UpdateOrbitParams ()
void	CalculateRotation ()
Protected Attributes inherited from EllipseBase
Quaternion	ellipse_orientation
NBody	centerNbody
OrbitData	initData

Detailed Description

Dust ring. Create a ring of particles in orbit around an NBody mass. Allows full control over the orbital attributes of the ring particles.

Must be attached to a particle system with a GravityParticles component.

Member Function Documentation

ApplyScale()

void DustRing.ApplyScale

(

float

scale

)

Apply scale to the orbit. This is used by the inspector scripts during scene setup. Do not use at run-time.

Parameters

scale

Scale.

InitNewParticles()

void DustRing.InitNewParticles	(	int	fromParticle,
		int	toParticle,
		ref double	r[,],
		ref double	v[,]
	)

Provide the initial positions and velocity for a range of particles. This method will be called as particles are created by the particle system. The implementing class must fill in the r[,] and v[,] arrays for the range specified. These arrays are indexed by [particle_num, dimension] where dimension 0,1,2 correspond to x,y,z.

See the DustBox script for a sample usage of this interface.

Parameters

fromParticle	From particle number.
toParticle	To particle number.
r	(out) 2D array [numParticles, 3] to hold physics position (x,y,z) per particle
v	(out) 2D array [numParticles, 3] to hold velocity (x,y,z) per particle

Implements IGravityParticlesInit.

---

The documentation for this class was generated from the following file:

• C:/Users/musgr/Documents/Unity/gravityengine/Assets/GravityEngine/Scripts/Particles/DustRing.cs
