EllipseBase Class Reference

DEPREACTED: Please use OrbitUniversal Ellipse base. More...

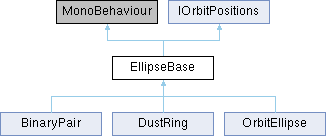

Inheritance diagram for EllipseBase:

Public Types
enum	ParamBy { AXIS_A , CLOSEST_P }

Public Member Functions
void	Init ()
	Init the ellipse, verify a center body is present, determine orientation and update transform.
void	SetCenterBody (GameObject centerBody)
	Sets the center body and initializes the ellipse configuration.
void	InitFromOrbitData (OrbitData od)
	Inits an EllipseBase orbit from orbital parameters contained in an OrbitData.
OrbitData	GetOrbitData ()
void	SetInitialPosition (NBody nbody)
	Sets the initial position based on the orbit parameters. Used in the init phase to set the NBody in the correct position in the scene before handing control GE.
Vector3[]	OrbitPositions (int numPoints, Vector3 centerPos, bool doSceneMapping)
	Calculate an array of points that describe the specified orbit.
Vector3[]	OrbitSegmentPositions (int numPoints, Vector3 centerPos, Vector3 startPos, Vector3 endPos, bool shortPath)
	Generate the points for an orbit segment given the start and end positions. If shortPath then the short path between the points will be shown, otherwise the long way around.
GameObject	GetCenterObject ()
	Return the center object around which this ellipse is defined.
Vector3[]	OrbitPositions (int numPoints, Vector3 centerPos, bool doSceneMapping)

Public Attributes
ParamBy	paramBy = ParamBy.AXIS_A
	Define ellipse by semi0major axis (A) or closest approach (P)
GameObject	centerObject
	object to orbit around (if null, will take parent game object)
float	ecc
	eccentricity (0..1, 0=circle, 1=linear)
float	a_scaled = -1f
float	p_scaled
float	a = 10f
	(a,p) hold the values for a and p in the unit system specified by the gravity engine. These are scaled and used to set a and p for game simulation based on the unit scaling system provided by gravity engine.
float	p
	pericenter - based on paramBy user can specify a OR p. a = p/(1-ecc)
float	omega_uc
	"longitude of ascending node" - angle from x-axis to line from focus to pericenter
float	omega_lc
	"argument of perienter" - angle from ascending node to pericenter
float	inclination
	inclination (degrees!)
float	phase
	initial TRUE anomoly (angle wrt line from focus to closest approach)

Protected Member Functions
void	UpdateOrbitParams ()
void	CalculateRotation ()

Protected Attributes
Quaternion	ellipse_orientation
NBody	centerNbody
OrbitData	initData

Detailed Description

DEPREACTED: Please use OrbitUniversal Ellipse base.

Base class used to handle the orbital parameters and draw the orbit path in the editor using Gizmos.

How to specify an ellipse in 3D:

size: one of a or p can be used to specify the ellipse size. a - length of semi-major axis i.e. the distance from the center of the ellipse to the farthest point p - pericenter - distance from focus of ellipse to point of closest approach to that focus

shape: controlled by ecc (eccentricity) 0 for a circle, 0.99 for a very long thin ellipse

orientation: The standard orbit parameters are used. Y ou can develop some intuition for these by chaging them in the Editor and observing the change in the orbit.

Orientation is defined with respect to the positive X axis. omega (lower case) - is a rotation in the plane of the orbit Inclination - is the tilt of the closest approach vector to the XY plance Omega (capital Omega) - is the rotation around Z after preceeding rotations

Member Function Documentation

GetCenterObject()

GameObject EllipseBase.GetCenterObject

(

)

Return the center object around which this ellipse is defined.

Returns

The center object.

InitFromOrbitData()

void EllipseBase.InitFromOrbitData

(

OrbitData

od

)

Inits an EllipseBase orbit from orbital parameters contained in an OrbitData.

Typically used for the creation of an EllipseBase for an OrbitPredictor and for the creation of solar system objects via SolarSystem.

Parameters

od

Od.

OrbitPositions()

Vector3[] EllipseBase.OrbitPositions	(	int	numPoints,
		Vector3	centerPos,
		bool	doSceneMapping
	)

Calculate an array of points that describe the specified orbit.

Returns

The positions.

Parameters

numPoints

Number points.

Implements IOrbitPositions.

OrbitSegmentPositions()

Vector3[] EllipseBase.OrbitSegmentPositions	(	int	numPoints,
		Vector3	centerPos,
		Vector3	startPos,
		Vector3	endPos,
		bool	shortPath
	)

Generate the points for an orbit segment given the start and end positions. If shortPath then the short path between the points will be shown, otherwise the long way around.

The points are used to determine an angle from the main axis of the ellipse and although they should be on the ellipse for best results, the code will do it's best if they are not.

Parameters

numPoints
centerPos
startPos
endPos
shortPath

Returns

SetCenterBody()

void EllipseBase.SetCenterBody

(

GameObject

centerBody

)

Sets the center body and initializes the ellipse configuration.

Parameters

centerBody

Center body.

Member Data Documentation

a

float EllipseBase.a = 10f

(a,p) hold the values for a and p in the unit system specified by the gravity engine. These are scaled and used to set a and p for game simulation based on the unit scaling system provided by gravity engine.

semi-major axis - based on paramBy user can specify a OR p. a = p/(1-ecc)

---

The documentation for this class was generated from the following file:

• C:/Users/musgr/Documents/Unity/gravityengine/Assets/GravityEngine/Scripts/Orbits/Deprecated/EllipseBase.cs
